Part #3093 - Narrow Tray

Narrow Tray—This is the standard tray used in all Berg Model A cases from +/-1961 to the present. It is an extruded channel made of high-impact styrene bonded with injection-molded ends. It is 2-1/2" x 31-1/2" long (inside dimensions).

The 1961 to 1981 Model A (24” front to back) will accommodate 30 all narrow trays. The other tray options for this model are 18 all wide trays or combinations of 12 wide and 10 narrow or 9 wide and 15 narrow.

The next generation Model A, 1981 to 1998 is 22” front to back. It will accommodate 25 all narrow trays. The other tray options for this model are 15 all wide trays or combinations of 9 wide and 10 narrow or 6 wide and 15 narrow.

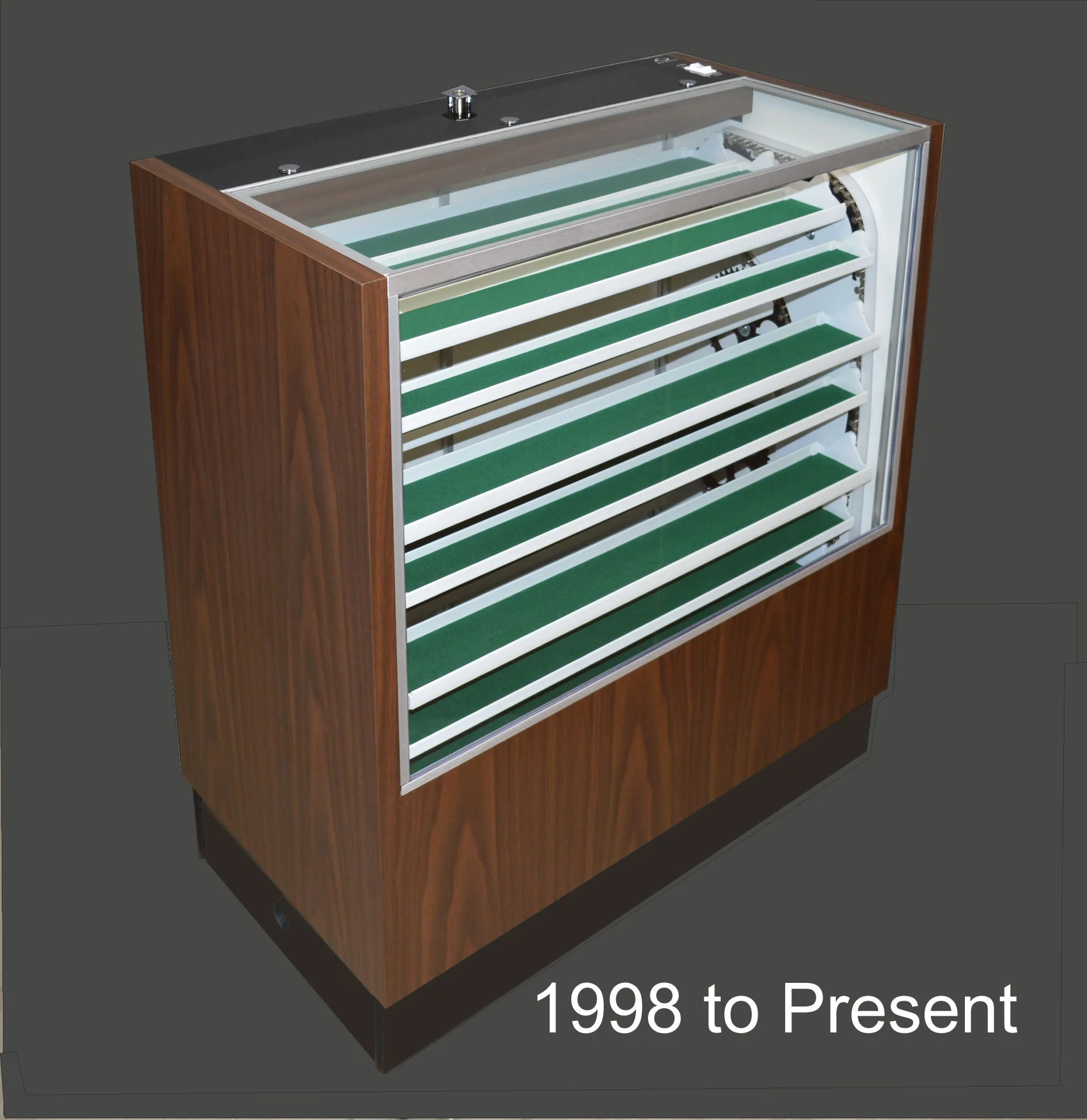

The current Berg Motion Case is 20” front to back. The tray configurations for this model are the same as the 22” Berg Model A with 15 all wide or 25 all narrow trays or combinations of 9 wide and 10 narrow or 6 wide and 15 narrow.

Spacing is 4 empty pegs between wide trays, 3 empty pegs between a wide and a narrow tray, and 2 empty pegs between narrow trays.
